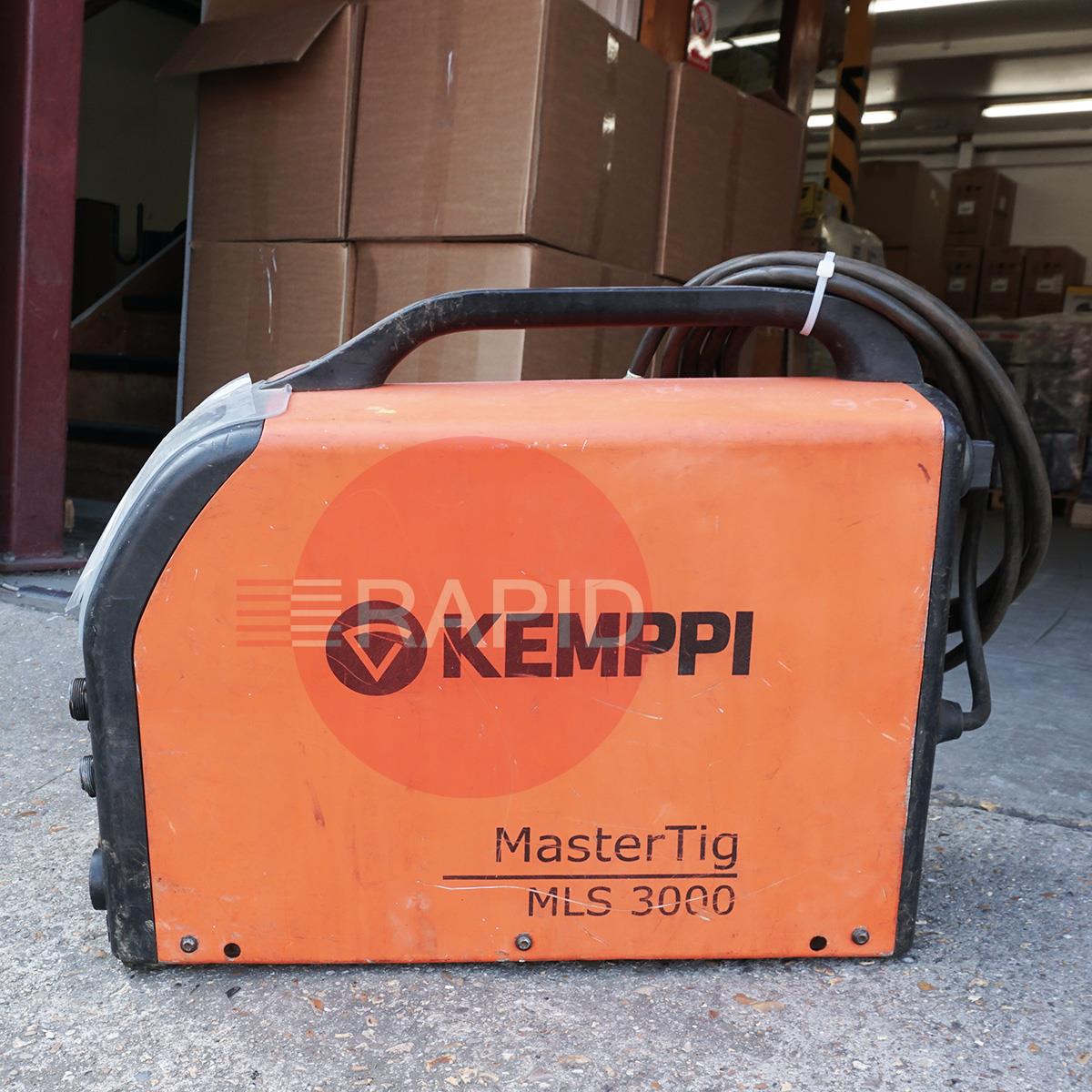

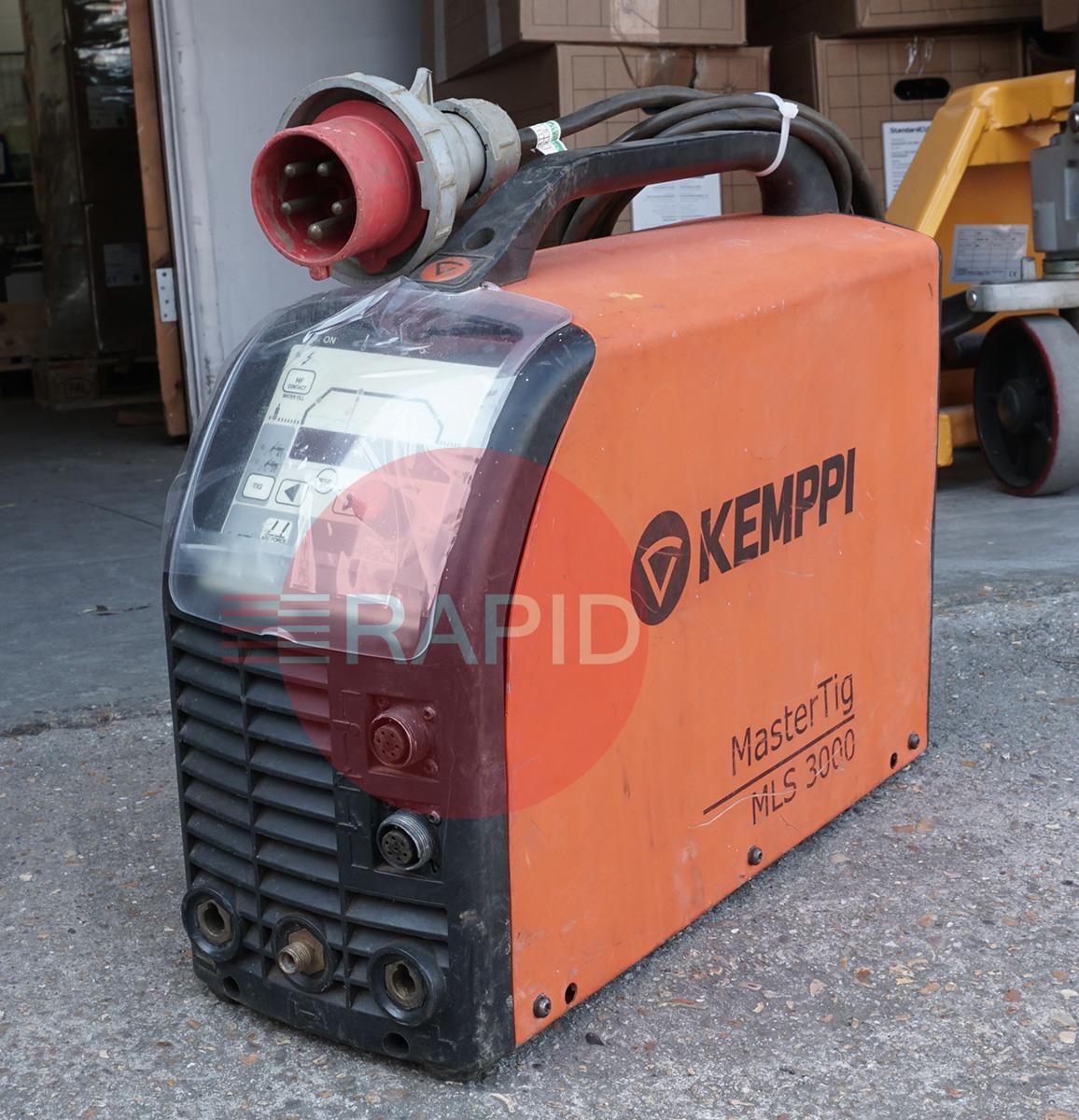

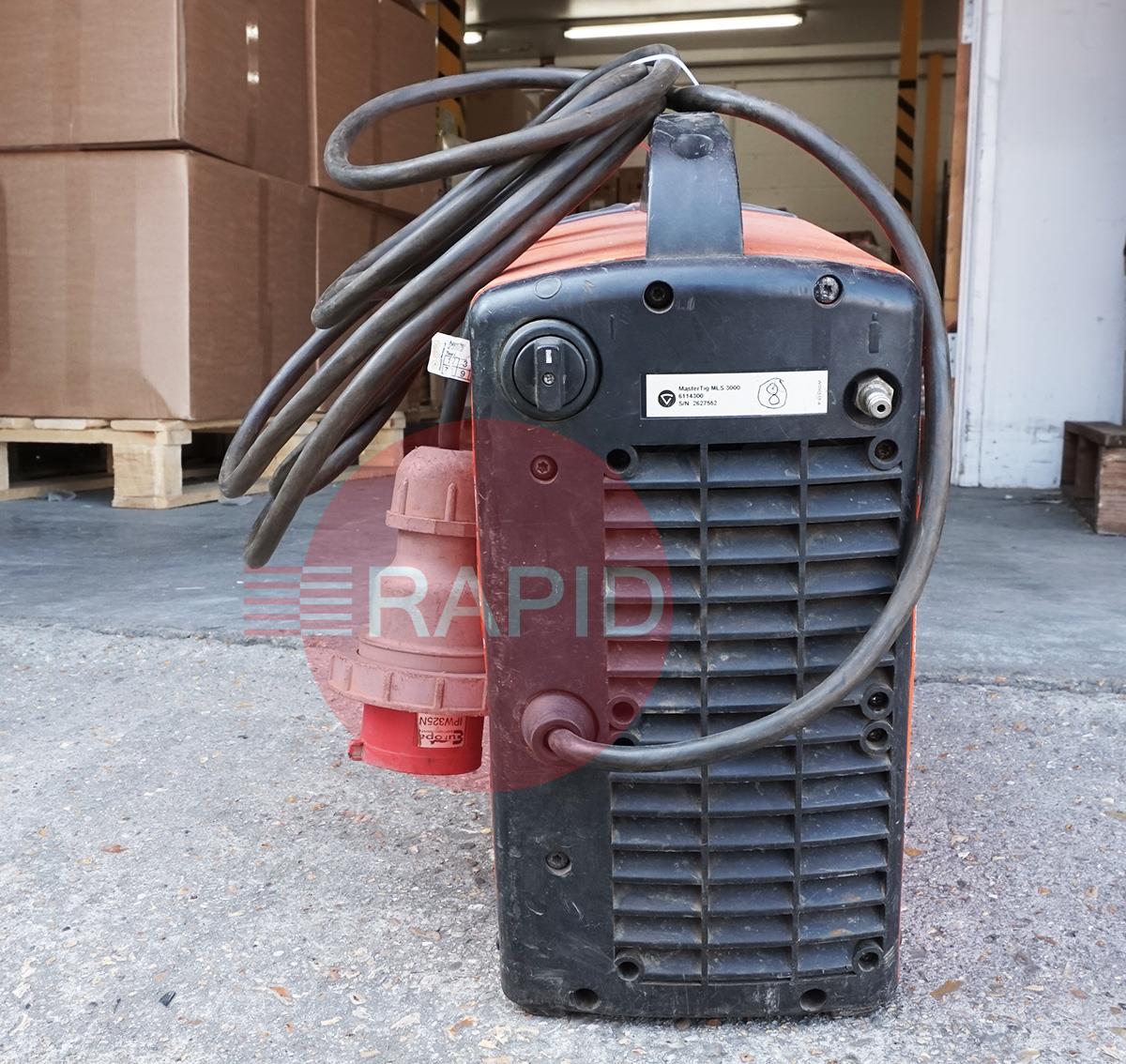

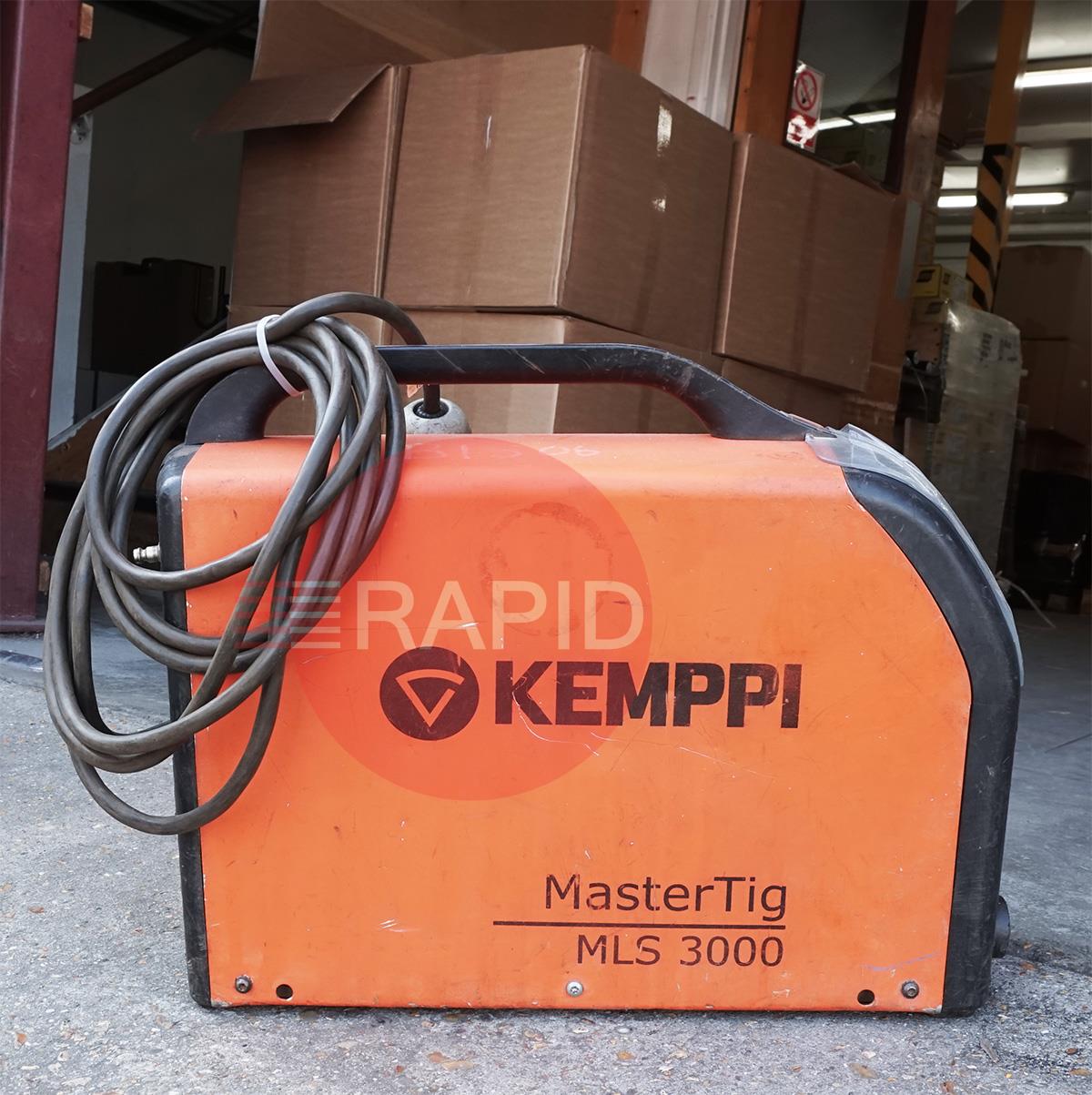

Thanks to our dedicated service team, this used TIG welder is in good working order. This MasterTig MLS 3000 comes included with a fitted 400v 3ph 5-pin plug. No Tig torch is included with this machine, although one can be supplied at an additional cost.

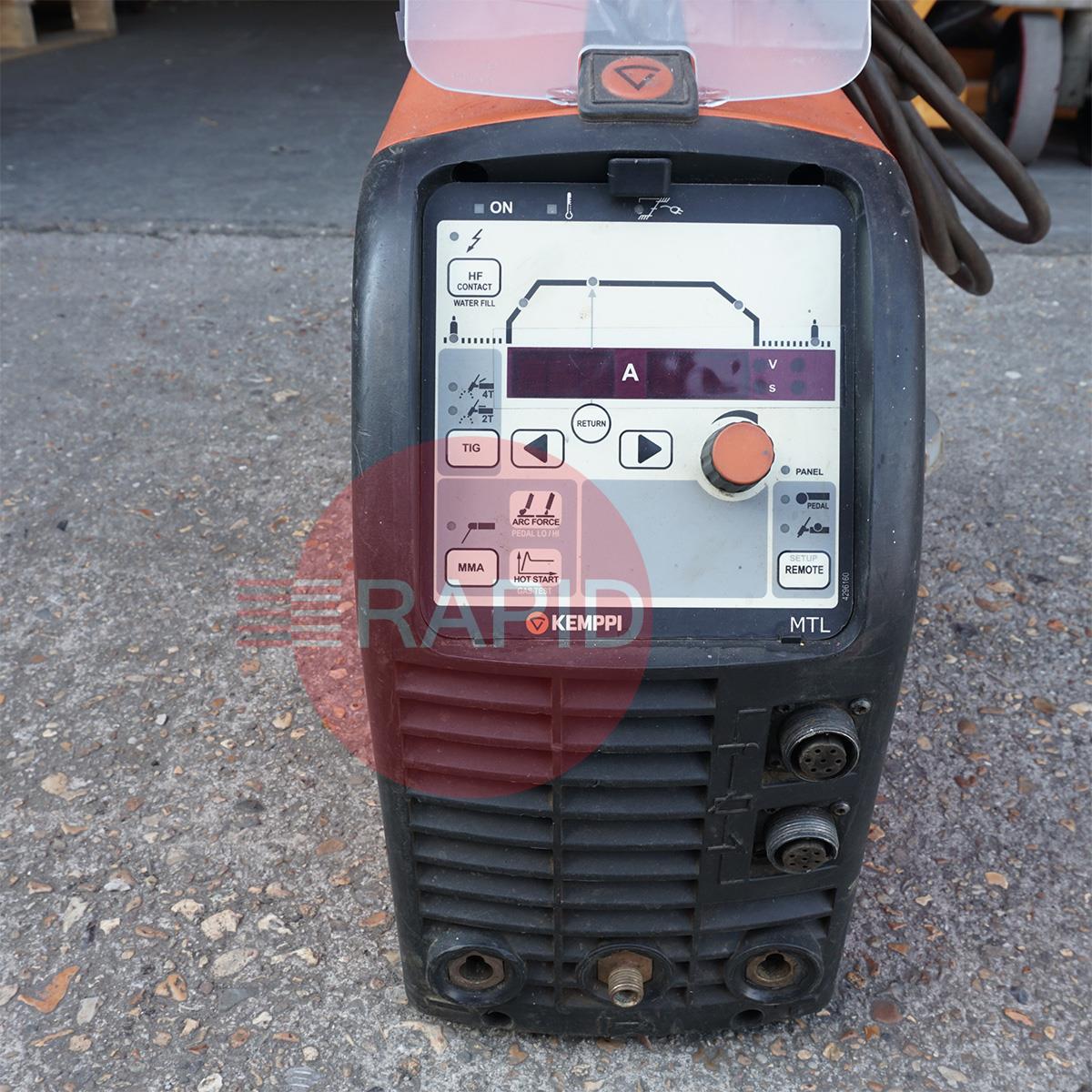

The Kemppi MasterTig MLS 3000 sets the standard for industrial TIG welding. Precise and refinded welding quality for workshop or site use, the MasterTig MLS 3000 became an industry standard, offering the necessary performance in a lightweight and portable design. A popular choice for the welding professional, offering choice 300A power source, delivering 30% duty cycle performance at the maximum stated output current. The MTX control panel is meant for piping etc. TIG / MMA applications. Features of this panel includes torch switch latching 2T/4T, Pulse, synergic rapid pulse and spot TIG, HF contact, ignition control, remote control and setup function control option.
Technical Specifications
- Connection voltage (3~, 50/60 Hz): 380-440 V +10
- Fuse, delayed: 10 A
- Output (TIG) 30% ED: 300 A / 22.0 V
- Output (TIG) 60% ED: 230 A / 19.0 V
- Output (TIG) 100% ED: 200 A / 18 V
- Output (MMA) 40% ED: 250 A / 30 V
- Output (MMA) 60% ED: 205 A / 28.2 V
- Output (MMA) 100% ED: 160 A / 26.4 V
- Open circuit voltage : 80 VDC
- Stick electrode sizes: 1.5 ... 5.0mm
- Welding range (MMA): 10 A / 20.5 V ... 250 A / 30.0 V
- Welding range (TIG): 5 A / 10.0 ... 300 A / 22.0 V
- Operating temperature range: -20…+40 °C
- External dimensions: 500 x 180 x 390 mm
- Weight (no accessories): 22 kg
- Degree of protection: IP23S
