Double Seal Purge System FAQs
Answers on setting up, sizing, venting and safely using a twin-disc purge system inside pipe and tube.
How is a double seal purge system set up around the joint?

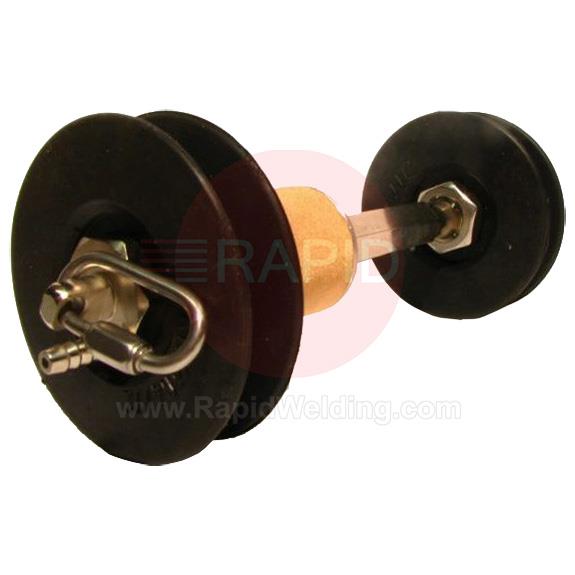

A double seal system places a sealing disc on each side of the joint, joined by a flexible or rigid tube. Purge gas is fed into the sealed section between them, pushing out the air, and the displaced air and spare gas leave through a vent.
The idea is the same as any purge dam: seal off a short length of pipe and fill only that section with inert gas, so the back of the weld is protected from oxygen. Exact disc spacing, hose routing and gas connections vary between designs, so follow the maker's instructions for your kit.
Why does a double seal system use less gas than flooding the whole pipe?

Because only the short length between the two seals is purged, not the whole bore. The HSE notes that the quantity of gas released can be significantly less with localised purging techniques such as damming than when an entire pipe or vessel is flooded.
A smaller purged volume generally means a faster purge and less gas to vent afterwards. It also means less gas to be released if something goes wrong, which is a safety benefit as well as a practical one.
Can I rely on the seals to stop purge gas escaping into the pipe?

No. The HSE states that the seal on dams and bladders should not be relied on to prevent gas leakage, and that the pipe or fabrication may still become a confined space. Gas can pass the discs, especially if the fit is poor or the bore is irregular.
That means you must plan for it: vent spare gas safely, never put your head or body into pipework that has held inert gas, and carry out a risk assessment before the work starts. If entry into a space that may contain purge gas cannot be avoided, a safe system of work and a calibrated oxygen meter are essential.
Why should I introduce the purge gas slowly?

A gentle flow lets the gas push the air out ahead of it instead of churning the two together. Trade guidance on weld purging advises that the inert gas should enter slowly, with the vent at the opposite end or highest point so air can escape as it is displaced.
A flow that is too high tends to cause turbulence, which can mix air back into the purge gas and slow down reaching a low oxygen reading. Start low, let the oxygen reading fall, and do not set a flow that blows the discs out of position or pressurises the section. The right flow depends on the pipe size and the maker's guidance.
