    Rapid Ref : 501050

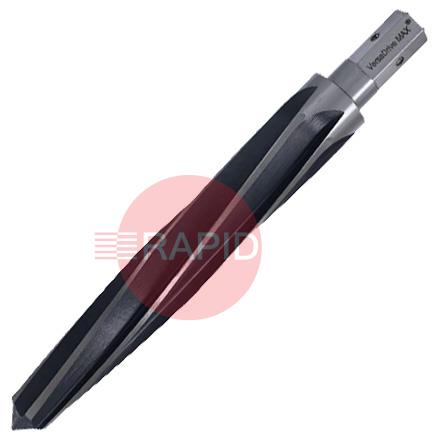

    HMT VersaDrive MAX Heavy Duty Impact Reamer
    501050

    Select Option
    Prices From £124.23 ex VAT

    HMT VersaDrive MAX reamers offer a heavy-duty solution for enlarging and aligning holes in thick metal plate (e.g. 20mm and above) or at large diameters. Specially designed cutting geometry and a unique 20mm shank mean they can be used with high torque Impact Wrenches and the most powerful Magnet Drills for superior performance and portability, allowing the job to be completed onsite and not removed for reworking.

    • Ideal for steel erection & bridge work
    • Ideal for modifying & enlarging holes
    • Use with high torque Impact Wrenches & high power, low-speed Magnetic Drills
    • Unique 6-flute design for a faster, smoother cut
    • Prepare holes ready for TCB & friction grip bolts
    • Use with 1/2", 3/4" & 1" drive high power Impact Wrenches
    • 1" drives require a step-down adaptor



    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    HMT Reamers FAQs

    Answers to common questions about choosing and using reamers for enlarging and aligning holes in steelwork.

    How much material should I leave for the reamer to remove?icon-minus-redicon-plus-red

    Too little and the reamer rubs instead of cutting, which creates heat, wears the tool and can leave the hole undersize. Too much and the hole can end up oversize with a rough finish.

    For machine reaming, the allowance usually depends on the material, the hole diameter and the finish of the pre-drilled hole, and is typically a small percentage of the diameter. The reamer maker's guidance is the best starting point for the exact amount, and for site work on structural joints follow the job specification.

    Do I need cutting fluid when reaming?icon-minus-redicon-plus-red

    In most cases, yes. Cutting fluid lubricates the cut, cools the tool, helps clear chips and generally gives a better finish and longer tool life. Reaming dry can leave a rougher hole and may give an oversize one.

    The type of fluid can affect both finish and final hole size, and the effect varies with the fluid, the material and the reamer. Use the fluid the reamer maker recommends for your material, and where the size is critical, try it on a test piece and measure the result before reaming the job.

    Why does my reamer chatter and how do I stop it?icon-minus-redicon-plus-red

    Chatter spoils the hole finish and damages the reamer. Common causes are a loose workpiece, play in the tool or tool holder, too much overhang, and the wrong speed or feed pressure.

    Clamp the work firmly, keep the reamer square to the hole and well supported, and avoid forcing it. If chatter continues, check the speed and feed against the maker's guidance, and make sure the hole you started with is straight and not badly off-centre.

    What eye protection should I wear when reaming?icon-minus-redicon-plus-red

    Wear eye protection suited to the job. The HSE lists working with power-driven tools, where debris or chippings may fly into the face, as a case where eye protection is needed, and says it should be appropriate for the task and fit the wearer properly.

    Safety glasses with side protection are the minimum for most reaming; goggles or a face shield may be better where chips are thrown. Do not use compressed air to blow swarf away, because it can bounce back into the eyes. Use a brush or a vacuum instead, with the tool stopped.
