    Rapid Ref : KPJH-100B

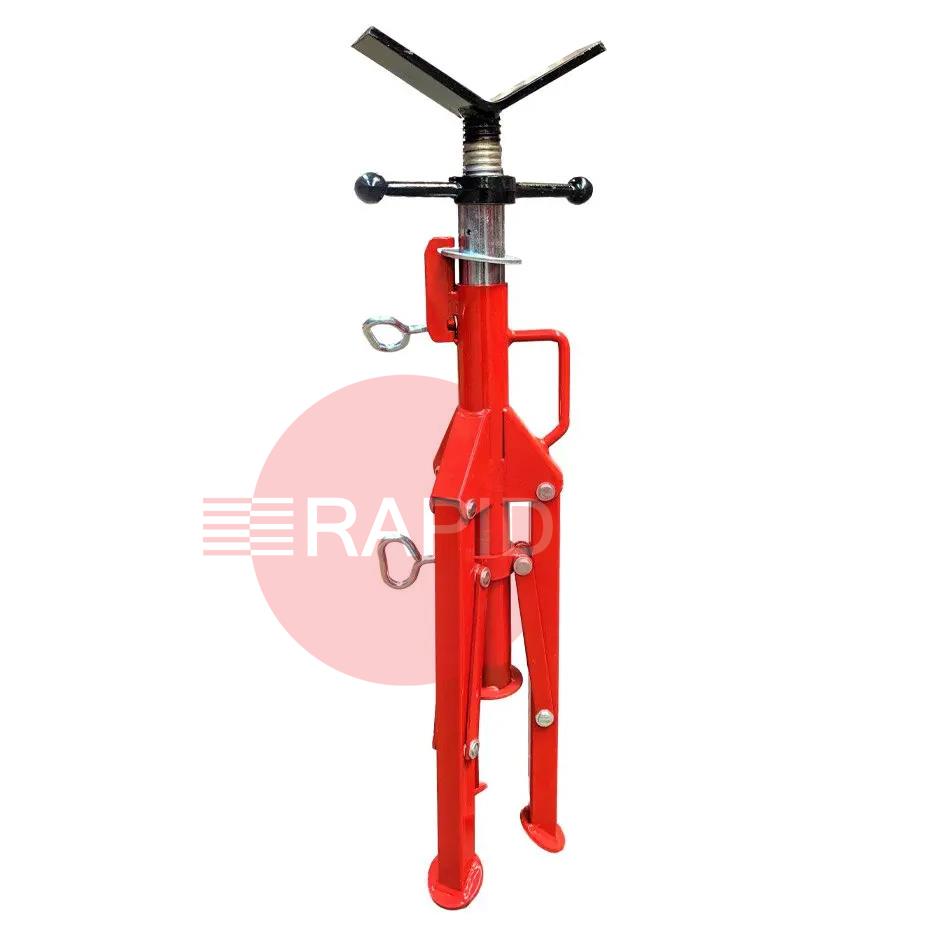

    Key Plant Tri-Folding-Jack Pipe Stand, incl. V-Head
    KPJH-100B

    £97.00  EX VAT
     Buy in 3 easy interest free payments of £32.33† with
    Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

    Independently load-tested for quality assurance, the Key Plant Tri Folding Jack is a folding leg pipe stand built for heavy-duty use. The Tri Folding Jack can carry a maximum pipe capacity of 3500lb (1588kg) and has an adjustable height range of 710-1250mm (28-49"). We offer a comprehensive range of head styles and slide-on options to suit any application.

    FEATURES

    • Load Capacity: 1588kg (3500lbs)
    • Recommended diameter: up to 12" (305mm)
    • Height Range: 710 – 1250mm (28 – 49")
    • Shipping Weight: 7.6kg (17lbs)
    • 38mm (1.5") fine adjustment thread
    • Convenient adjustment handle
    • Quick-action lock washer
    • Fall guard
    • Set screw can lock jack head to stand
    • CE Rated
    • Folds for easy storage
    • Convenient carrying handle

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Related Items

    Pipe Stands FAQs

    Practical answers on choosing, setting up and looking after adjustable pipe stands and their heads.

    How do I read the load rating on a pipe stand?icon-minus-redicon-plus-red

    The rating in the maker's manual or on the stand is normally the maximum load for one stand, not for a set. Split the weight of the pipe between the stands and keep each one within its own limit. If a pipe is heavy, add another stand rather than overloading one.

    Fitting accessories such as different heads can lower the maximum capacity, and accessory heads can carry a lower rating than the stand itself, so check the rating of every head and attachment as well as the base. If you cannot find the rating or are unsure, do not use the stand until you have checked the maker's instructions.

    Does it matter what the floor is like under a pipe stand?icon-minus-redicon-plus-red

    Yes. Makers say to use stands only on solid, level surfaces that will support the weight of the load, not on inclines, and to avoid dirt or gravel. All the feet of each stand should make solid contact with the floor.

    If the floor is uneven or soft, move the work to a better spot or use a firm, flat base under the feet rather than packing the legs with makeshift material. Check that the feet are all in solid contact before you load the pipe, and keep the stand out of walkways.

    What damage means a pipe stand should be taken out of use?icon-minus-redicon-plus-red

    Check a stand for damage before each use. Makers list signs such as legs or base that are bent, twisted or showing fatigue, cracked or rusted welds, a bent lock ring (which points to overload), a cracked, bent or worn head, a head that tilts or rotates under load, and a pipe that cannot be centred in the V-head.

    Any of these can let the pipe slip, roll or fall, or the stand tip. Take a damaged stand out of use. If the maker does not supply the part as a replacement, do not try to repair it.

    Under the Provision and Use of Work Equipment Regulations, the HSE says work equipment must be maintained in an efficient state, working order and good repair and inspected so faults are caught early.

    What should I do if the pipe on a stand starts to slip or tip?icon-minus-redicon-plus-red

    Do not reach out to steady or catch it. Makers say that if a load becomes unstable you should move away from the work area quickly, because a falling pipe can cause serious injury.

    Never allow anyone to stand beneath a supported pipe, and keep hands clear of the gap between the pipe and the stand head when positioning it.

    After an incident, remove the load, check the stand for bent legs, a bent lock ring or a damaged head before it is used again, and think about whether the pipe needs another stand, a hold-down device or a better base. Review the set-up with your risk assessment.
