Rapid Ref : 308650

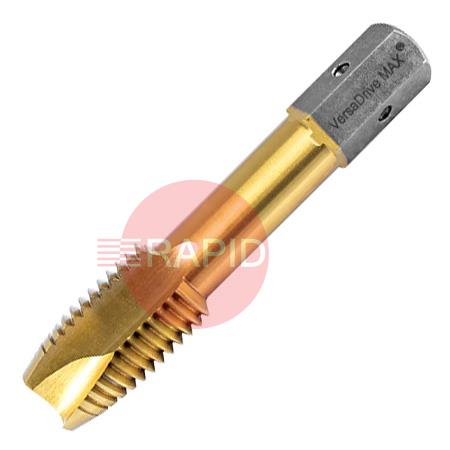

HMT VersaDrive MAX ImpactaTap - UNC Thread Size
308650

Select Option
Prices From £226.27 ex VAT

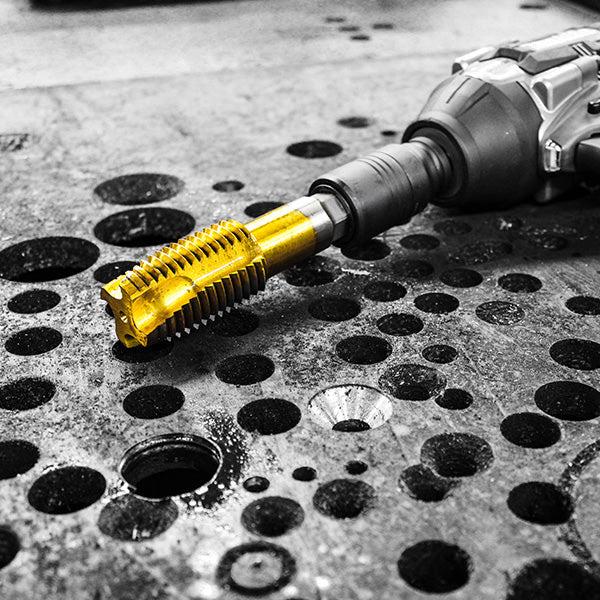

HMT VersaDrive MAX Taps are heavy-duty, impact-rated taps for use in challenging industrial applications. Based on the bestselling ImpactaTaps, they are double-hardened with a unique cutting geometry that makes them suitable for use with impact wrenches.

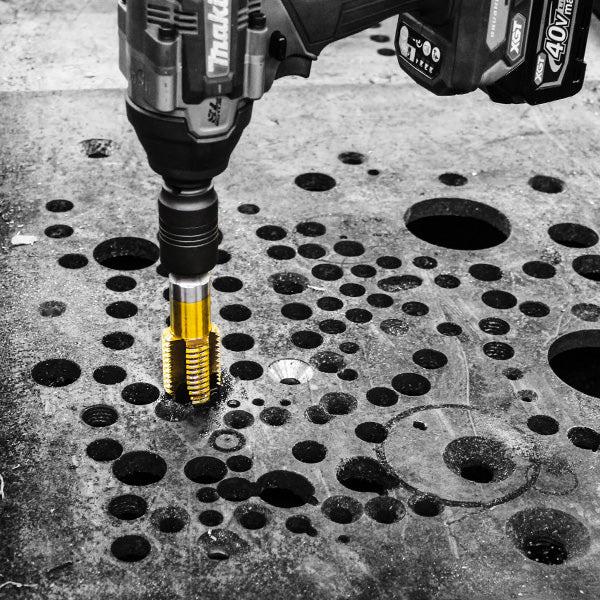

  • Thread new holes effectively with high-torque impact wrenches
  • Ideal for cleaning and rethreading pre-threaded holes
  • Used in commercial vehicle and transportation repair applications
  • Can also be used with heavy-duty, reversible magnet drills
  • Swarf chip-breaker action for effective use on through holes

HMT Taps FAQs

Answers to common questions about choosing and using taps and thread chasers for cutting and restoring internal threads.

Should I use a spiral flute tap or a spiral point tap?icon-minus-redicon-plus-red

The choice depends on where the chips can go. A spiral point tap pushes chips ahead of it, so it suits through holes where chips can leave the far side. A spiral flute tap draws chips back out along its flutes, so it suits blind holes.

Using a spiral point tap in a blind hole can pack chips at the bottom until the torque rises sharply and the tap breaks. Spiral flute taps are generally not recommended for very hard materials, so check the maker's guidance for the material you are tapping.

Why do taps break, and how can I avoid it?icon-minus-redicon-plus-red

A tap is hard and brittle, and it rarely breaks without warning. Common causes are a hole drilled too small, chips packing in the flutes, the wrong tap style for a blind or through hole, hitting the bottom of a blind hole, side loading from a tap that is not square, and too little lubricant.

Check the tap drill size, keep the tap square, use suitable cutting fluid and clear the chips by backing off regularly. Stop if the tap suddenly becomes harder to turn, as forcing it is how most taps snap.

How do I choose the right drill size before tapping?icon-minus-redicon-plus-red

A tapped hole starts with a drilled hole, called the tap drill, which is smaller than the thread's nominal size so that metal remains to form the thread. For metric coarse threads a common workshop rule is the nominal diameter minus the pitch, and a finer pitch therefore needs a larger drill than a coarse pitch of the same diameter.

The rule is only a quick estimate, so use a tap drill chart for your thread and the maker's guidance, especially for fine, inch, pipe or special threads. A hole that is too small overloads the tap, while one that is too large leaves a shallow thread with less holding strength. Drill square and remove any burr at the entry.

Why do some taps come oversize for galvanised work?icon-minus-redicon-plus-red

When a part is galvanised, the zinc coating adds thickness to the threads, which can increase the diameter of a bolt thread. The nut or tapped hole therefore needs to be cut slightly larger so that the coated bolt can be assembled. This is called overtapping, and it is why oversize taps exist.

An oversize tap is not a general replacement for a standard tap, because a nut tapped oversize will fit loosely on an uncoated bolt. Check the maker's marking and the requirement for your fastener before choosing.
