Rapid Ref : J7050

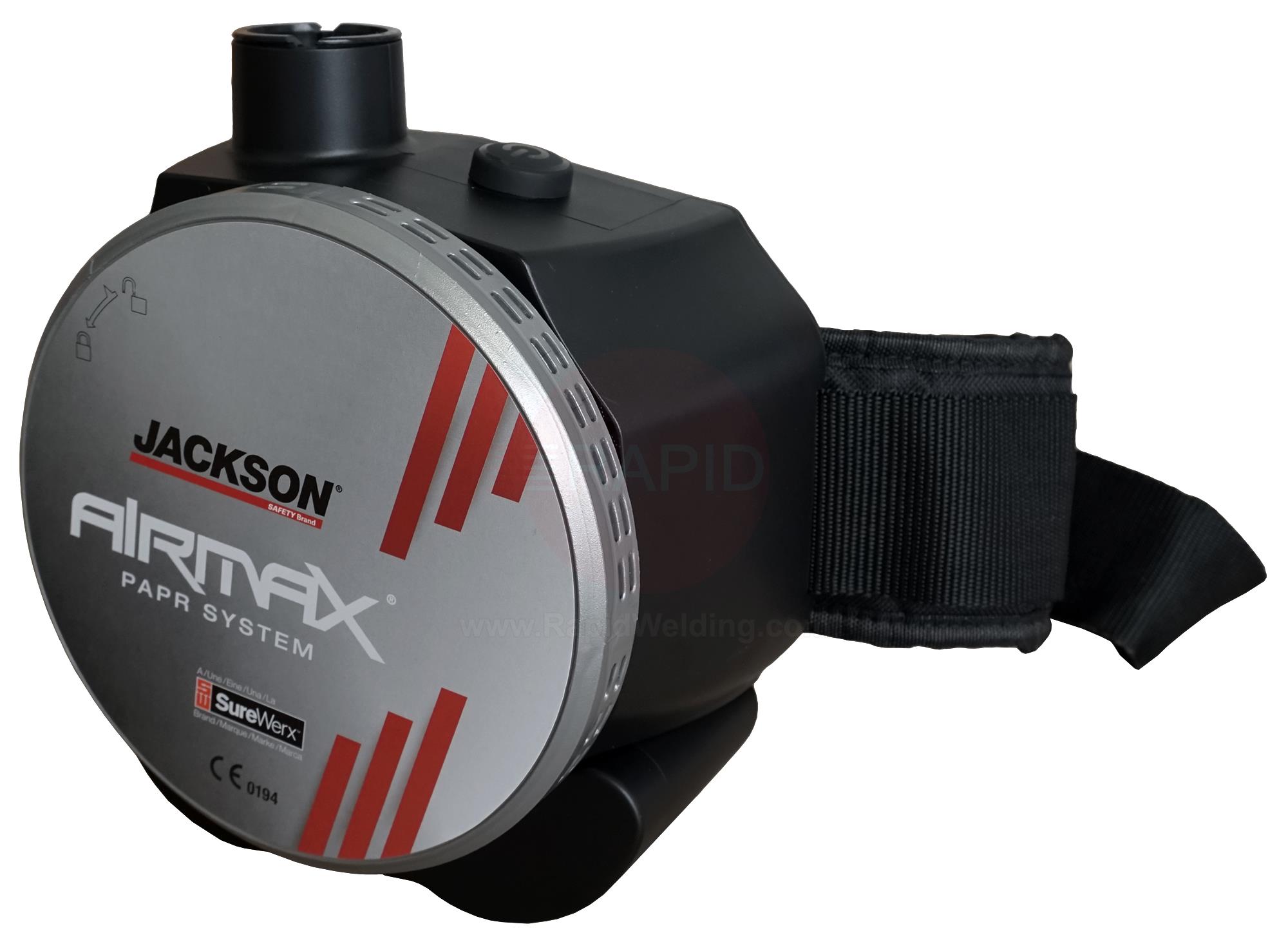

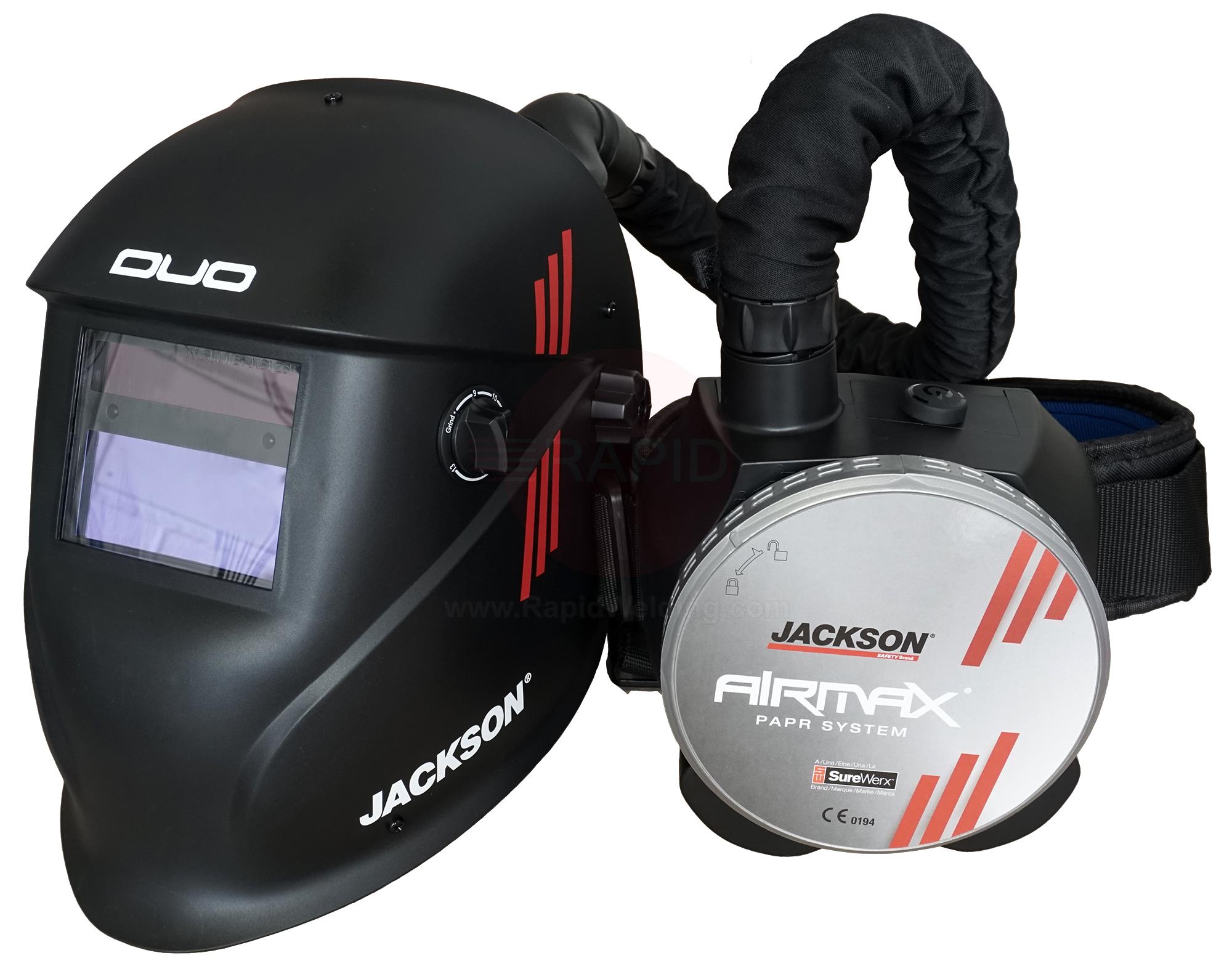

Jackson WH25 Duo Auto Darkening Welding Helmet and R60 Airmax PAPR System, Shades 9-13 With Grind Function, TH3 Protection
J7050

£569.00  EX VAT
SSP Suggested Selling Price = £831.70  YOU SAVE £262.70
 Buy in 3 easy interest free payments of £189.67† with

The Jackson WH25 Duo, combined with the R60 Airmax PAPR System, offers a fantastic solution with health, safety, and productivity in mind. Boasting a high protection factor at a TH3: 0.2% inward leakage maximum is guaranteed that is based on EN 12941.

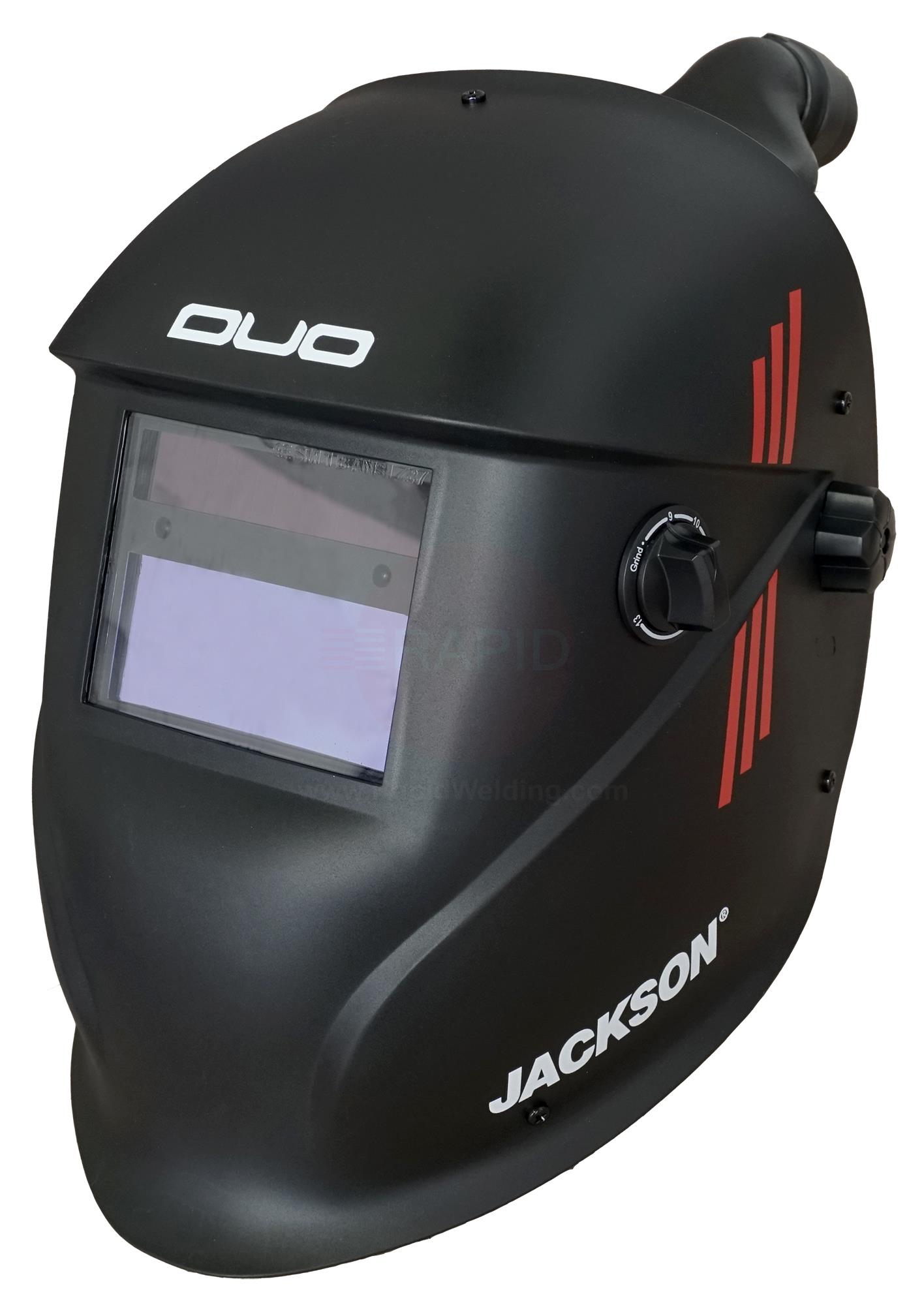

With a shade range of 9-13 and ADF optical classes 1/1/1/2, this helmet also features sensitivity and delay adjustment, alongside grinding mode as well. An adjustable, comfortable, ergonomic headgear is present with this helmet with an air duct designed to be used with the R60 Airmax PAPR System.

Product Details

Features

  • Shade 9 - 13 adjustment with grind mode.
  • TH3 P R SL, best in its class.
  • P3 filter with an increased surface area.
  • Extremely lightweight at 990g, simple and easy to operate.

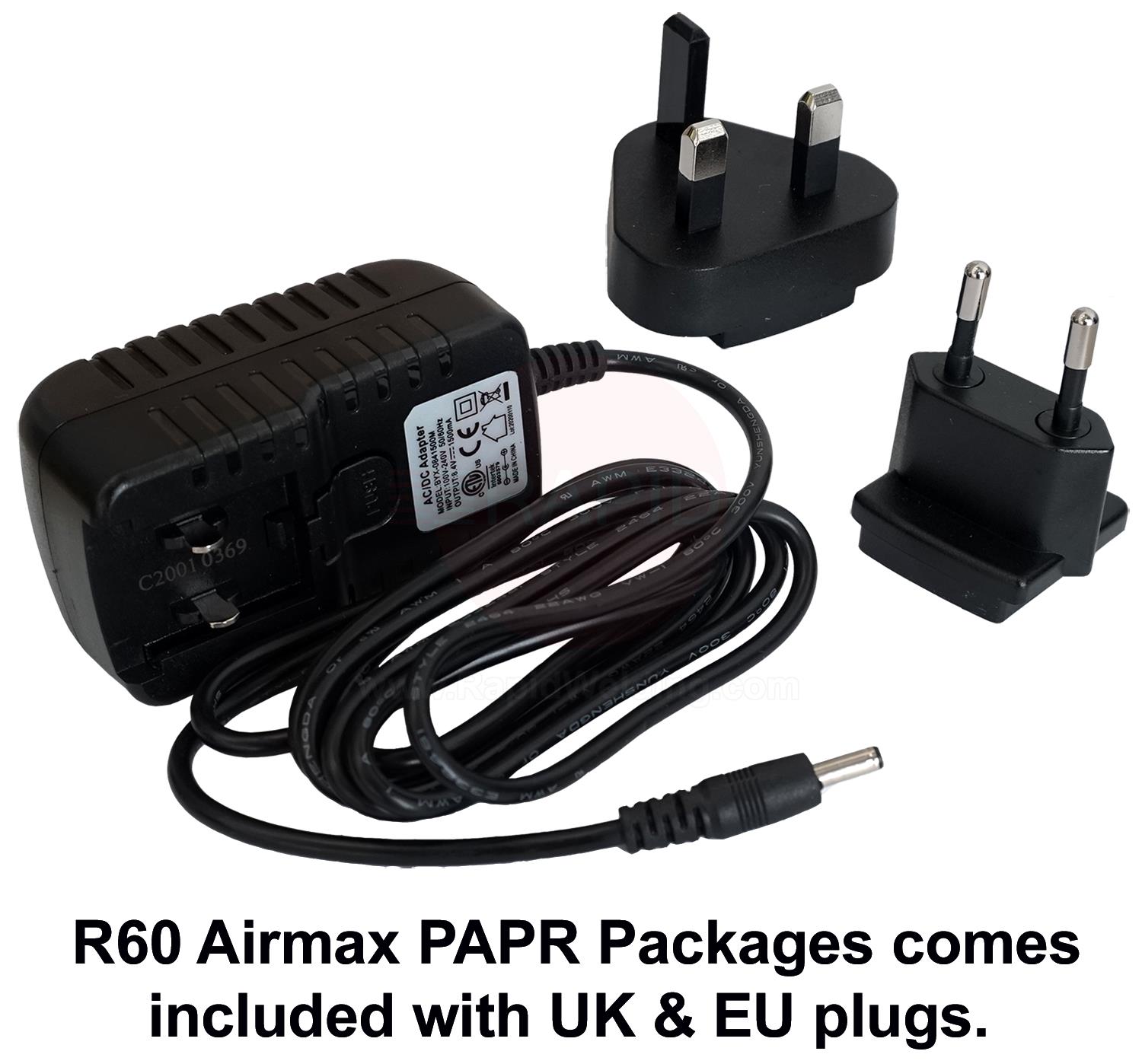

  • Operation time up to 9 hours, with 5 hours of charging time with a Li-ion battery 7.4V/5200mAh.
  • Fitted with flame retardant supporting belt and hose cover, designed for prolonged usage.
  • Noise level of 75dBA.

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure

Related Items

Jackson Air Fed Helmets FAQs

Powered air-fed welding and grinding helmet systems: what they do, how to check them and how to look after the blower, filters, battery and tube.

Can a powered air helmet replace fume extraction?icon-minus-redicon-plus-red

Not on its own. General ventilation does not give the control that is expected for welding fume, and indoor welding normally needs suitable engineering controls, typically local exhaust ventilation. Respiratory protective equipment is then used for whatever fume the extraction does not capture. Outdoors, where extraction is often impractical, suitable respiratory protection is expected.

A powered helmet is therefore best seen as the last layer of protection, used within a wider respiratory protection programme that covers selection, training, inspection, maintenance, cleaning and storage. Your risk assessment decides what combination you need.

How do I check the airflow before I start work?icon-minus-redicon-plus-red

An airflow check is needed before each use, with the filters fitted and the battery fully charged. The method differs between systems: some use a flow indicator at the end of the breathing tube, others a check at the blower outlet with the tube removed, and the minimum flow figure is set by the maker.

If the reading is below the minimum, do not weld. Common causes include a loaded or blocked filter, a battery that is not fully charged, or a damaged or blocked tube or connection. Fix the cause, and if the unit still fails the check, take it out of use and have it serviced. Always follow the exact procedure and minimum figure in your manual.

What are the limits of a powered air-purifying helmet?icon-minus-redicon-plus-red

A system that filters the surrounding air cannot make bad air safe to breathe. Do not use these units where the oxygen level is low, or where the contaminants are unknown or immediately dangerous. Filters are also chosen for particles, or for specific gases and vapours if a gas filter is fitted, so check that the filter type matches what is in the air.

In tanks, vessels and other confined spaces, a different type of equipment with an independent breathing air supply may be needed, and the space may need to be tested first. Your risk assessment and the maker's instructions decide this.

How should I look after the battery?icon-minus-redicon-plus-red

Battery condition has a direct effect on airflow, so follow the maker's instructions for charging, storage and replacement. Storage and use conditions vary significantly between makers, excessively high temperatures can reduce battery capacity during both storage and use, and a battery that is damaged, leaking or bulging should not be used. A poorly stored battery can let airflow drop below the required level.

Charge the pack as the maker directs before a shift, keep it away from heat and sunlight, and use only the charger specified for that pack. Check your manual for long-term storage and disposal, and replace the pack when the run time becomes too short to cover your work.
