    Rapid Ref : PC330  Mfr Ref : PC330SS

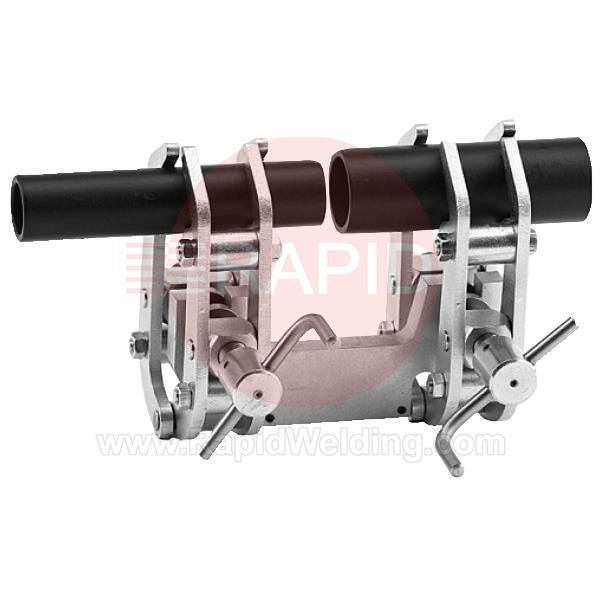

    Pincer Clamp, 75 - 330mm
    PC330SS PC330

    £2362.50  EX VAT
     Buy in 3 easy interest free payments of £787.50† with

    For quick and accurate alignment of pipes of equal or different diameters on a common centre line. Automatic diameter compensation. All parts stay easily accessible for welding.

    • Weight: 26Kg
    • Clamping Range: 75 - 330mm

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    Fit Up Clamps FAQs

    Answers to common questions about clamps that hold pipe ends in line and at the right gap while you tack them together.

    How wide should the root gap be, and why does it matter?icon-minus-redicon-plus-red

    The root gap lets the first pass melt through to the inside of the joint evenly. Too small a gap is a recognised cause of incomplete root penetration, and too large a gap can lead to excess penetration, with the weld pool dropping through inside the pipe.

    The correct figure depends on the pipe size, the process and the bevel, and is set by your welding procedure specification, so use the value it gives. Set the gap accurately and tack adequately so that it does not close up during tacking and welding. A fit up clamp helps you hold the gap steady all the way round, but check it at several points before and after tacking.

    What is hi-lo and why do I need to control it?icon-minus-redicon-plus-red

    Hi-lo is the step between the inner surfaces of two pipe ends where one sits higher than the other. It happens because pipe is never perfectly round, wall thickness is not perfectly uniform around the circumference, and the ends rarely meet exactly.

    If it is left uncorrected, it can make the root pass harder to run and can leave a stress concentration at the root of the weld. A fit up clamp lets you correct the step before you tack, typically by adjusting the screws or the bridge. How much hi-lo is acceptable is set by the welding procedure and the governing code for your job, so check those rather than relying on a rule of thumb.

    Can I use a fit up clamp to lift or support a pipe?icon-minus-redicon-plus-red

    No. Alignment and fit up clamps are made to hold pipe ends in position for tacking, not to carry load, and makers state that they should not be used as lifting devices or as load-bearing devices. Never hang a pipe or fitting from the clamp, or use it as a lifting point.

    Support the pipe independently, with stands, rollers or suitable lifting equipment, and use proper handling methods for heavy lengths. Your risk assessment should cover manual handling of the pipe, and the clamp's manual will give its own warnings.

    Should I tack weld with the clamp on, and what makes a good tack?icon-minus-redicon-plus-red

    Fit up clamps are designed for you to set the joint, tack it, and then release the clamp. Tacking can pull a joint slightly out of position, so recheck the gap and alignment after tacking, and ideally before you take the clamp off. How many tacks you need, and when the clamp comes off, depends on the pipe size, wall thickness, material and your welding procedure.

    Tacks should be inspected, and any slag, porosity, lack of fusion or cracks removed before the root pass. Feathered tack ends should be ground or blended so that they merge into the final weld. Tacks must also follow the welding procedure, including any preheat, because rapid cooling of a small tack can leave brittle, crack-prone metal.
