    Rapid Ref : 303810

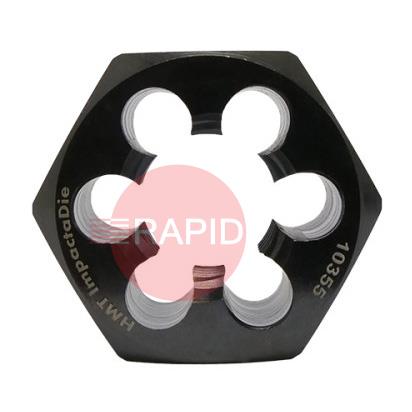

    HMT VersaDrive ImpactaDie XL 36mm Hex Die Nut - Metric Sizes
    303810

    Select Option
    Prices From £59.42 ex VAT

    HMT ImpactaDie Threader FAQs

    Answers on choosing and using impact-driven die threaders to cut, extend, clean and repair external threads.

    What are metric coarse, metric fine and UNC threads?icon-minus-redicon-plus-red

    These describe the thread system and pitch. For a given diameter the larger pitch is the coarse thread and a smaller pitch is a fine thread, so the same metric diameter can exist in more than one pitch. Metric fine threads are written with the pitch, for example M10 x 1.25, while coarse sizes are normally listed by diameter alone.

    UNC is the coarse inch series and UNF is the fine one; a higher number of threads per inch means a finer thread. Do not assume a nut will fit just because the diameter matches: a coarse nut will not go onto a fine stud. A die is made for one diameter and pitch, so match both and verify the threads per inch or pitch before you start.

    Do I need to chamfer the end of the bar first?icon-minus-redicon-plus-red

    Yes, it helps. Die-threading guidance says to chamfer or bevel the end of the rod or bar before cutting, so the die can start square and grip properly.

    Some kits include a chamfering tool for this. Without a chamfer, the die may start badly, bind or cut a rough first thread. Remove any burr left from cutting the bar, and check that the end is clean and square before starting. Follow the instructions supplied with your kit for the size of chamfer.

    How do I clear swarf and avoid the die jamming?icon-minus-redicon-plus-red

    The usual die-threading technique is to turn forward for a short way, then ease back slightly to break the chip. This also lets fresh lubricant reach the cutting edges. An impact die has a chip-breaking action built into it, but it still pays to check the die and holder or collar periodically and clear any swarf that builds up.

    Keep the tool square to the work and avoid sideways movement or tilting, which can damage the die. Apply firm forward pressure when starting the cut and when reversing off the thread. If the die stalls, back off and clear it instead of forcing it.

    Can I use it to clean up or repair a damaged thread?icon-minus-redicon-plus-red

    Yes, a die is often used on external threads that are rusty, clogged with coating or lightly deformed, to clean up bolts and studs. Use the collar designed for cleaning and rethreading so the die can run the full length of the thread.

    Be aware that a cutting die removes some metal, whereas a thread chaser reforms the existing thread without removing material. Where a thread is badly damaged, worn or missing too much material, replacing the part is usually safer than trying to rescue it. Always match the die to the exact diameter and pitch of the thread.
