    Rapid Ref : 505050-SET1

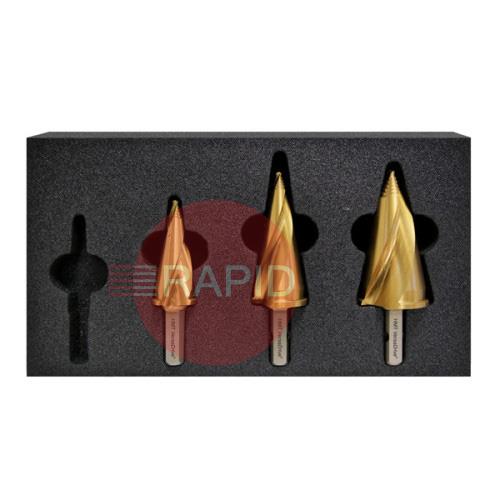

    HMT VersaDrive TurboTip ConeCutter Insert Foam 3 Piece Set (8 - 32mm)
    505050-SET1

    Click here to see what's included

    £229.54  EX VAT
    SSP Suggested Selling Price = £270.05  YOU SAVE £40.51
     Buy in 3 easy interest free payments of £76.51† with
    The new Impact-rated TurboTip ConeCutter is designed for thin materials such as electrical boxes or sheet metalwork. Ideal to enlarge an undersized hole to fit an electrical gland. The TurboTip stepped tip allows for fast hole starting with no pilot drill needed. The short drill length allows use in tight spaces.

    • Safety collar prevents injury & damage
    • Spiral flute design
    • Industrial grade Titanium Nitride coating reduces heat buildup and burn-out
    • Use on Impact to prevent dangerous kickback caused by handheld rotary tools
    • Heavy-duty hex shank design for secure non-slip operation
    • Quality results on stainless steels and Inox - rotary application recommended
    • VersaDrive patented shank and modular adapters provide unbeatable jobsite flexibility
    • Impact-rated due to dual hardening process - allows up to 15X faster speed than traditional methods

    HMT Step Drills FAQs

    Answers to common questions about choosing and using step drills for clean, accurate holes in thin sheet material.

    What is a step drill best used for?icon-minus-redicon-plus-red

    A step drill is a cone-shaped bit with a series of stepped diameters, and each step cuts one set hole size. It is intended for accurate, repeatable holes in thin material such as sheet steel, aluminium and plastic, for example in electrical enclosures, panels and vehicle bodywork. One bit covers several hole sizes, so you change tools less often.

    It is not meant for thick plate or deep holes, because each step only cuts a short length of material. For thicker material a twist drill is the usual choice.

    How does a step drill compare with a twist drill on sheet metal?icon-minus-redicon-plus-red

    On thin sheet, a twist drill can grab, wander and leave a rough or slightly out-of-round hole with a burr around the edge. A step drill cuts one diameter at a time, so the hole is usually round and cylindrical, and each step tends to clean up the edge left by the step before it.

    A twist drill is still the better choice for thicker material, for deep holes and for sizes that fall between the steps. Choose according to the thickness and material you drill most often.

    What if I need a hole size between two steps?icon-minus-redicon-plus-red

    A step drill cuts fixed diameters, so it cannot make a size that falls between two steps. The usual options are to use the next step up if the larger hole is acceptable, to drill with a twist drill of the exact size, or to use a tapered sheet-metal cone drill, which enlarges a hole steplessly.

    Check the sizes marked on the bit before you buy, as step drills are made in metric and in inch sizes, and make sure the steps match the holes you need, for example for glands, conduit or fixings.

    Should I use cutting fluid when drilling with a step drill?icon-minus-redicon-plus-red

    When drilling metal, cutting fluid is normally recommended, and makers specifically advise it for stainless steel. It keeps the bit cooler, reduces wear, helps flush away chips and generally gives a cleaner cut and longer bit life. Back the bit out of the hole now and then to clear swarf and let it cool.

    Aluminium can clog the cutting edges, so a wax-based lubricant is often suggested for it. Choose a fluid that is suitable for the material you are drilling.
