    Rapid Ref : CK-2C5  Mfr Ref : 2C5

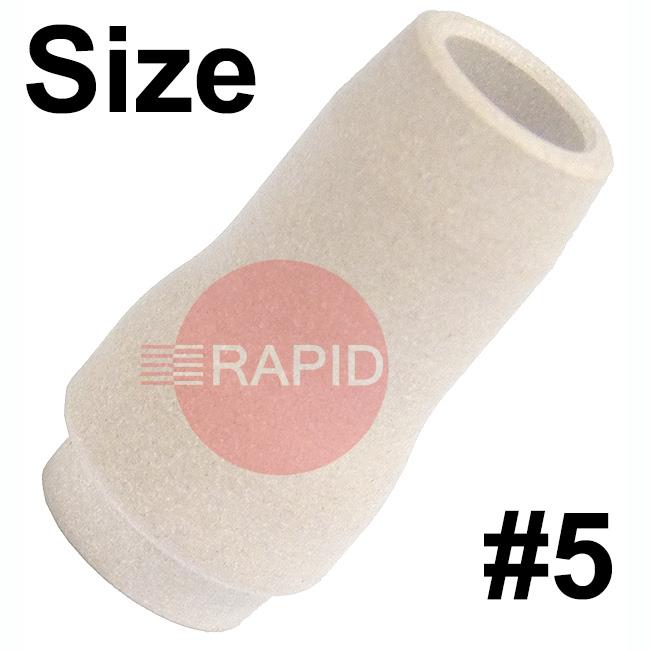

    Cup Ceramic 8mm Bore 13N15
    2C5 CK-2C5

    £15.87  EX VAT
    SSP Suggested Selling Price = £31.74  YOU SAVE £15.87

    Cup Ceramic 8mm x 30mm (1/4" x 1-5/32")

    Related Items

    Ceramic Cups FAQs

    Ceramic gas cups and gas lens cups for gas-cooled TIG torches: how to match them to your torch, choose a size and look after them.

    What does a ceramic gas cup do and how does its size affect shielding?icon-minus-redicon-plus-red

    The cup sits at the front of the TIG torch and directs the shielding gas around the hot tungsten and the weld pool. Its size and shape strongly affect how well the weld is covered.

    In general, a larger bore gives a longer, steadier column of gas and better protection, while a smaller bore gets into tight spaces but speeds the gas up, which can make it turbulent. Turbulence can pull air into the shield. So pick the largest cup that still gives you access to the joint and a sensible view of the work.

    What is the difference between a standard cup and a gas lens cup?icon-minus-redicon-plus-red

    A standard cup is used with a normal collet body, where the gas leaves through small side holes and can swirl. A gas lens cup is used with a gas lens, which has fine screens that smooth the gas into a more even flow.

    The even flow protects the weld better and usually lets you extend the tungsten further out of the cup, which helps with joints that are hard to reach. For critical or high-quality work a gas lens is the usual recommendation, while a standard collet body is often enough for practice or non-critical welds. Check that your cup is made for a gas lens before ordering.

    Is argon dangerous when welding in tanks or confined spaces?icon-minus-redicon-plus-red

    Yes. Argon is heavier than air, so it can collect in low areas such as tanks, pits and vessels. It is colourless and odourless, so you cannot rely on smell to detect it, and a lack of oxygen can cause loss of consciousness very quickly and with little warning.

    Avoid confined-space entry where possible. Where it cannot be avoided, the space needs ventilating, testing for oxygen from outside, and a proper rescue plan. Never add oxygen to improve the air. Follow your risk assessment and your employer's confined-space procedures, and do not weld in such spaces without proper training.

    How do I find out which ceramic cups fit my torch?icon-minus-redicon-plus-red

    Cups are made for a particular torch series, and parts from different series are often not interchangeable. Start with the torch itself: the series or model is usually marked on the torch body, the handle or the packaging, and the manual normally has a parts list.

    Also check which collet body type you have, because a gas lens cup needs a gas lens and a standard cup needs a standard collet body. If you are unsure, compare the thread, the seating end and the bore of your old cup with the new one before ordering, or ask our team to help you match it.
