    Rapid Ref : TT1000P110

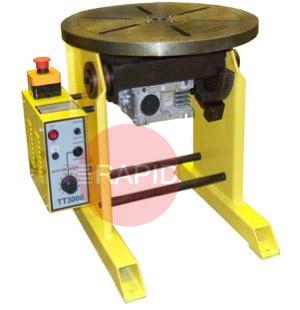

    TT1000 Precision 345mm Welding Positioner / Turntable, 0.2 - 5rpm, 110v/240v.
    TT1000P110

    £2809.00  EX VAT
     Buy in 3 easy interest free payments of £936.33† with

    As standard, the TT1000 is supplied with a foot switch to stop & start the rotation. On the front panel, there is a switch to select clockwise or anticlockwise rotation, a knob to control the speed & a high-low speed range switch for a more accurate setting. The turntable can be positioned to any angle between horizontal & 90°, a hand wheel which drives a worm gear is fitted at the rear to adjust this angle & a lock-off device is fitted to prevent the table from being accidentally moved or knocked off angle. The table is machined with 6 slots 90 x 12mm for mounting jigs or the chuck. The table is also scored every 30mm with a circle to assist in the accurate setting up of the job. Under the table is a substantial brass bush arrangement for the welding earth return and we supply a 2m welding lead attached to this.

    The TT1000 Precision is fitted with a double reduction gearbox to enable work at slower speeds with better consistency & higher torque ideal for larger diameter jobs & TIG welding etc. All models are protected from HF interference & can be used with all welding machines.

    Product Details


    Specification:

    Max welding current: 450A at 60%
    Max load - turntable in horizontal position: 100Kg
    Max load - turntable in vertical (90°) position: 50Kg
    Rotation Speed: 0.1 - 5rpm
    Table diameter: 345mm
    Dimensions: 420mm H x 430mm W x 440mm L

    Related Items

    Weld Positioning Equipment FAQs

    Straight answers to the questions people ask most when choosing and using a welding positioner.

    What is a welding positioner and what is it used for?icon-minus-redicon-plus-red

    A welding positioner holds the workpiece and turns it, so you can weld in a comfortable, favourable position instead of moving around the work. The most common type is the rotary positioner, a powered turntable or faceplate that rotates round parts such as pipes, flanges, tanks and shafts under a stationary torch.

    This gives more even welds, better control of the weld pool and less operator fatigue, and it makes circumferential welds much easier. It also suits automated welding and cladding, because the work moves at a steady, repeatable speed.

    How do I choose the right capacity for a positioner?icon-minus-redicon-plus-red

    Capacity is the weight of work a positioner is rated to carry, but the rating depends on how the load sits on the table. A load centred on the axis of rotation is the easy case. If the centre of gravity is offset from the centre, or the table is tilted, the positioner can safely carry less.

    The maker normally gives ratings for different offsets and angles, so check these against your heaviest and most awkward workpiece, and allow a good margin. Remember to include any fixtures, chucks and clamps in the weight.

    What is a hollow centre or through hole in a positioner for?icon-minus-redicon-plus-red

    A positioner with a hole through the centre of the table lets the work pass through, or lets you feed cables, hoses and gas lines through. It is useful for long pipes and shafts that extend through the table, and for supplying a purge gas to the inside of pipework while you weld.

    If your work is long or you need to purge the inside of a pipe, choose a positioner with a hole large enough for what you need to pass through it.

    How do I hold the work on a positioner?icon-minus-redicon-plus-red

    Work can be held with a chuck, clamps, bolted fixtures, or purpose-made tooling. A self-centring chuck suits round parts such as pipes and bars, and a quick-action chuck makes loading and unloading faster. T-slotted tables allow clamps and fixtures to be bolted down.

    Whatever you use, the work must be held securely and as close to the centre as possible, because the turning load can throw the part off if it is loosely held. Check the grip each time, and make sure fixtures are heavy enough for the work and heat.
