    Rapid Ref : 23T-37  Mfr Ref : 12301300

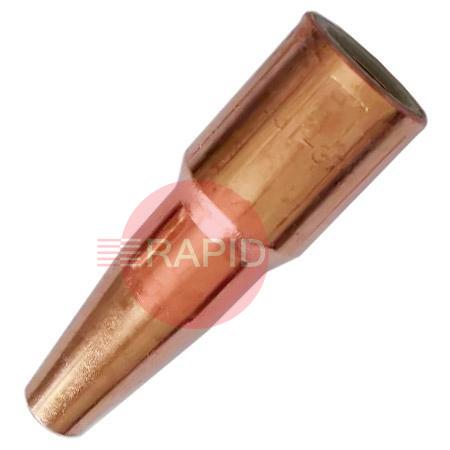

    Tweco Std Nozzle, Tapered, 9.5mm Bore
    12301300 23T-37

    £27.68  EX VAT
    SSP Suggested Selling Price = £30.75  YOU SAVE £3.07

    Tweco Torch Parts FAQs

    Straight answers on contact tips, nozzles, diffusers and liners: how to match them to your torch, spot wear and fit them properly.

    Why must the contact tip be fitted tightly?icon-minus-redicon-plus-red

    The contact tip passes the welding current to the wire. If it is loose in the diffuser or tip holder, the joint heats up, current transfer becomes poor and the tip can overheat and wear out far faster than it should. A tip that looks cooked or discoloured is often a sign of this.

    Fit it snug and firmly seated, but do not force it. Over-tightening can damage the tip or the holder, so follow your torch maker's instructions on how tight to go. Check the tip is still tight after a long session, always with the torch cool, and look at the seat in the diffuser for damage when you change tips.

    How do I fit a new liner and cut it to the right length?icon-minus-redicon-plus-red

    Remove the nozzle, contact tip and diffuser, release the liner at the back of the torch and pull the old one out. Lay the torch lead out straight, never coiled, then fit the new liner and trim it to the length your torch maker specifies. That dimension depends on the diffuser and torch design, so use the maker's chart rather than guessing.

    File off any burrs left by the cut, because burrs can snag the wire, and chamfer the end if it is hard to push in. A liner cut too short leaves a gap behind the tip where the wire can wander and jam. Refit the diffuser, tip and nozzle afterwards and check the wire feeds smoothly.

    Why am I getting porosity, and could the nozzle or gas flow be the cause?icon-minus-redicon-plus-red

    Yes, both can be. Spatter building up inside the nozzle narrows the gas path and disturbs the shielding gas, which can leave pinholes in the weld. Too much gas flow is also a known cause, because it creates turbulence at the end of the nozzle that can draw air into the gas stream. Too little flow leaves poor coverage.

    Clean or replace a clogged nozzle, check hoses and joints for leaks and kinks, shield the weld from draughts, and keep the flow within the range your torch maker and the nozzle size suggest. A tapered nozzle can help where draughts cannot be avoided. Try changes on scrap first.

    What does the gas diffuser do and what else should I check at the front of the torch?icon-minus-redicon-plus-red

    The diffuser sits behind the nozzle and holds the contact tip. It spreads the shielding gas around the wire as it leaves the torch, and on many designs it also helps to locate the tip and liner. Its gas holes can clog with spatter, and the edges can burn or crack with heat.

    Whenever you take the nozzle off, check that the diffuser is tight, look at its O-rings for cuts, cracks or flattening, and replace any that are damaged. Also look at the insulator inside the nozzle, because it keeps the nozzle electrically separate from the live parts. If it is damaged, the nozzle usually needs replacing.
