    Rapid Ref : VNS-XX

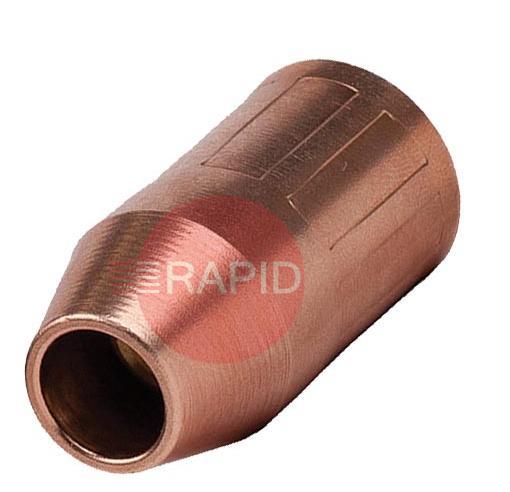

    Tweco Velocity Series Nozzle
    VNS-XX

    Select Option
    Prices From £8.61 ex VAT

    Fronius MIG Parts FAQs

    Straight answers to the questions people ask about MIG torch wear parts: nozzles, contact tips, insulators, diffusers and seals.

    How do I make sure I order the right MIG torch part?icon-minus-redicon-plus-red

    Torch wear parts are made for a particular torch design, so a nozzle, insulator or diffuser from one style will often not fit another. Start with the torch's data plate, the model name on the handle or neck and the parts list in the instruction manual, and match the part by its description, diameter, length and thread.

    A part that looks similar but differs slightly in size can seat badly and leak gas or overheat. If you are unsure, have the torch details to hand and our team can help you identify the part.

    How do I choose the right contact tip for my wire?icon-minus-redicon-plus-red

    The tip must match the wire diameter, and the bore is normally marked on the tip. A tip that is too big lets the arc wander, while one that is too small makes the wire stick or burn back. Tips also come in different lengths and thread types, so match those to your torch.

    If you switch to a different wire size, change the contact tip as well as checking the liner and drive rolls. Using the wire size printed on the spool as your starting point avoids most mistakes.

    Do I need a special contact tip for aluminium wire?icon-minus-redicon-plus-red

    Usually yes. Aluminium wire is soft and expands more than steel as it heats, so it can drag or seize in a bore sized for steel wire. Tips made for aluminium normally have a slightly larger bore for the same wire diameter, and are often marked to show it.

    The extra clearance should only be slight. A bore that is too loose gives patchy electrical contact, which can make burn-back worse. Use a tip intended for your aluminium wire diameter and keep the bore clean, because aluminium build-up inside it is a common cause of sticking. Pair it with a plastic liner and drive rolls made for aluminium, and follow your torch maker's recommendation.

    When should I replace a contact tip?icon-minus-redicon-plus-red

    Replace it when it shows wear, not just on a timetable. The first sign is usually that the hole is no longer round. Other signs are an erratic or unstable arc, wire that feeds badly, a burnt or deformed opening, and more spatter than usual.

    Changing tips by habit, after a set number of jobs, is not a reliable guide on its own, as wear depends on current, wire and how you work. Keeping a few spare tips to hand means a worn one is never left in the torch.
