Tweco Torch Parts FAQs
Straight answers on contact tips, nozzles, diffusers and liners: how to match them to your torch, spot wear and fit them properly.
How do I know when a contact tip is worn out?

The clearest sign is the hole in the tip losing its round shape. Wire friction and heat stretch it into an oval, often called keyholing, and the wire then wanders so the arc wanders with it. Other signs are an erratic arc, wire that snags or feeds unevenly, a burnt or deformed tip end, extra spatter and frequent burn-back.
There is no fixed number of hours. Wear depends on current, wire type and how clean the wire and joint are, so many welders check the tip every time they change a wire spool. If feeding is poor, the tip is usually the quickest thing to check and swap before you look at the drive rolls and then the liner.
What size contact tip do I need for my wire?

Choose the tip whose bore is marked for your wire diameter, for example the same size as the wire you are feeding. The hole has to let the wire slide through freely yet still make good electrical contact. An oversized bore tends to give patchy contact, more arcing inside the tip and more burn-back, while an undersized one drags on the wire and feeds erratically.
Soft wires such as aluminium sometimes work better with a tip that is slightly larger than the nominal wire size, because they expand with heat. Check the wire maker's and torch maker's advice. If feeding is poor, also check the drive roll tension and the wire quality before simply moving up a size.
How do I fit a new liner and cut it to the right length?

Remove the nozzle, contact tip and diffuser, release the liner at the back of the torch and pull the old one out. Lay the torch lead out straight, never coiled, then fit the new liner and trim it to the length your torch maker specifies. That dimension depends on the diffuser and torch design, so use the maker's chart rather than guessing.
File off any burrs left by the cut, because burrs can snag the wire, and chamfer the end if it is hard to push in. A liner cut too short leaves a gap behind the tip where the wire can wander and jam. Refit the diffuser, tip and nozzle afterwards and check the wire feeds smoothly.
What does the gas diffuser do and what else should I check at the front of the torch?

The diffuser sits behind the nozzle and holds the contact tip. It spreads the shielding gas around the wire as it leaves the torch, and on many designs it also helps to locate the tip and liner. Its gas holes can clog with spatter, and the edges can burn or crack with heat.

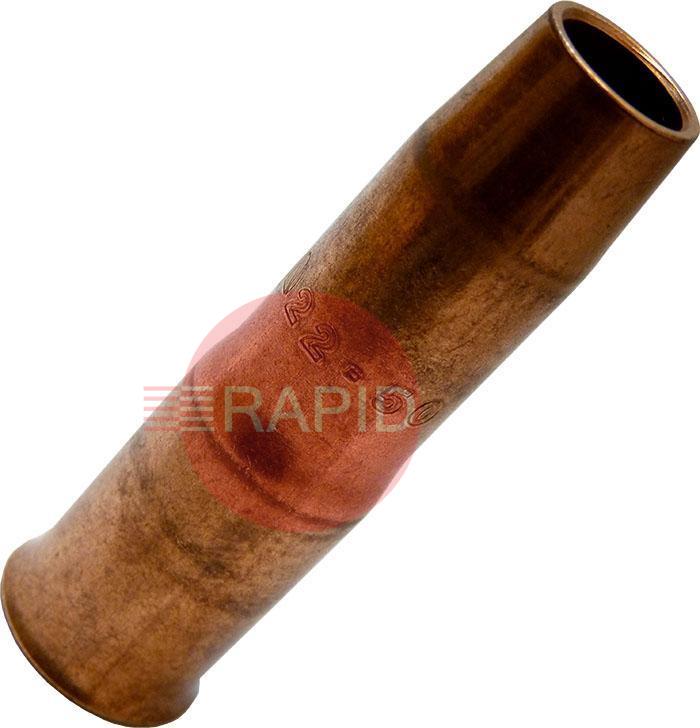

Whenever you take the nozzle off, check that the diffuser is tight, look at its O-rings for cuts, cracks or flattening, and replace any that are damaged. Also look at the insulator inside the nozzle, because it keeps the nozzle electrically separate from the live parts. If it is damaged, the nozzle usually needs replacing.
