Tweco Torch Parts FAQs
Straight answers on contact tips, nozzles, diffusers and liners: how to match them to your torch, spot wear and fit them properly.
What size contact tip do I need for my wire?

Choose the tip whose bore is marked for your wire diameter, for example the same size as the wire you are feeding. The hole has to let the wire slide through freely yet still make good electrical contact. An oversized bore tends to give patchy contact, more arcing inside the tip and more burn-back, while an undersized one drags on the wire and feeds erratically.
Soft wires such as aluminium sometimes work better with a tip that is slightly larger than the nominal wire size, because they expand with heat. Check the wire maker's and torch maker's advice. If feeding is poor, also check the drive roll tension and the wire quality before simply moving up a size.
How do I fit a new liner and cut it to the right length?

Remove the nozzle, contact tip and diffuser, release the liner at the back of the torch and pull the old one out. Lay the torch lead out straight, never coiled, then fit the new liner and trim it to the length your torch maker specifies. That dimension depends on the diffuser and torch design, so use the maker's chart rather than guessing.
File off any burrs left by the cut, because burrs can snag the wire, and chamfer the end if it is hard to push in. A liner cut too short leaves a gap behind the tip where the wire can wander and jam. Refit the diffuser, tip and nozzle afterwards and check the wire feeds smoothly.

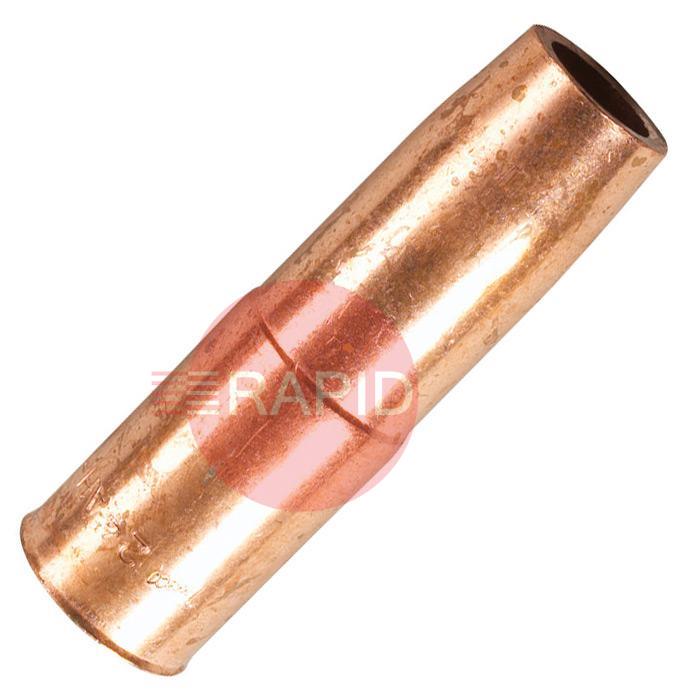

Why am I getting porosity, and could the nozzle or gas flow be the cause?

Yes, both can be. Spatter building up inside the nozzle narrows the gas path and disturbs the shielding gas, which can leave pinholes in the weld. Too much gas flow is also a known cause, because it creates turbulence at the end of the nozzle that can draw air into the gas stream. Too little flow leaves poor coverage.
Clean or replace a clogged nozzle, check hoses and joints for leaks and kinks, shield the weld from draughts, and keep the flow within the range your torch maker and the nozzle size suggest. A tapered nozzle can help where draughts cannot be avoided. Try changes on scrap first.
What does the gas diffuser do and what else should I check at the front of the torch?

The diffuser sits behind the nozzle and holds the contact tip. It spreads the shielding gas around the wire as it leaves the torch, and on many designs it also helps to locate the tip and liner. Its gas holes can clog with spatter, and the edges can burn or crack with heat.
Whenever you take the nozzle off, check that the diffuser is tight, look at its O-rings for cuts, cracks or flattening, and replace any that are damaged. Also look at the insulator inside the nozzle, because it keeps the nozzle electrically separate from the live parts. If it is damaged, the nozzle usually needs replacing.
