    Rapid Ref : 2040EX-SET2

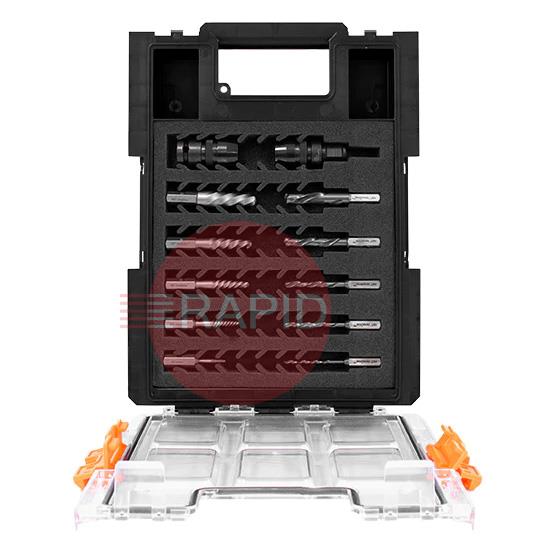

    HMT VersaDrive ImpactaBite LH Drill & Stud Extractor 12 Piece Set (M5 - M26)
    2040EX-SET2

    Click here to see what's included

    £327.17  EX VAT
    SSP Suggested Selling Price = £384.90  YOU SAVE £57.73
     Buy in 3 easy interest free payments of £109.06† with

    Premium specification drill bits with left-handed spiral flute. 8% Cobalt with advanced TiAln coating to reduce friction and heat generation. It can be used both on Rotary and Impact settings.

    To be used for drilling the pilot holes in broken bolts and seized studs ready for VersaDrive® Bolt extractors. It is designed to run in reverse to help loosen the seized item while creating the pilot hole.

    HMT Drill Bits FAQs

    Answers to common questions about choosing and using cobalt, impact and general purpose drill bits for steel.

    How should I drill stainless steel without ruining the bit?icon-minus-redicon-plus-red

    Stainless steel work hardens when it gets hot or when the bit rubs instead of cutting. Use a sharp bit, a moderate speed, and a firm, steady feed so the bit keeps cutting. Do not let it dwell or rub in the hole.

    Use cutting fluid and watch the swarf: good chips are clean spirals, and dark or powdery chips mean too much heat. Narrow bits need a minimum speed, while larger bits and deep holes should run slower. Check the bit maker's speed chart for your grade of stainless, and clamp the work firmly.

    What loose clothing, hair or glove precautions apply when drilling?icon-minus-redicon-plus-red

    Drills are rotating machinery, and entanglement is a serious risk. The HSE advises avoiding loose or baggy clothing, tying back or covering long hair, and avoiding jewellery, including rings, when operating engineering machinery. It also says many serious workshop accidents could be avoided if gloves were not worn near rotating machinery such as drills and lathes.

    Follow the instructions for your drill or drilling machine and your own risk assessment. Keep hands clear of the bit while it is turning.

    How should I secure the work and protect my eyes when drilling steel?icon-minus-redicon-plus-red

    Always clamp the workpiece firmly so the bit cannot grab it and spin it round, rather than holding it by hand. Loose workpieces are a serious safety risk.

    Drilling throws off sharp, hot swarf. The HSE lists projectiles and metal splash among eye hazards and says eye protection should be suited to the task and fit properly. Depending on your risk assessment that may mean safety spectacles, goggles or a face shield. Clear swarf only after the drill has stopped, using a brush or hook, not bare hands.

    What drill size do I need before tapping a thread?icon-minus-redicon-plus-red

    The hole before tapping must be a specific 'tap drill' size, slightly smaller than the thread's nominal diameter, to leave material for the thread to form. A tool maker explains that a hole that is too small forces the tap to remove too much material and risks binding and breaking it, while one that is too large gives shallow threads that can strip.

    Charts often assume a high thread percentage, and a lower percentage that allows a slightly larger drill can make tapping easier. Charts also differ with whether the tap cuts or forms the thread, so use the chart supplied with your tap or the tap maker's data. Drill the hole straight and square to the surface.
