    Rapid Ref : 602030-0310

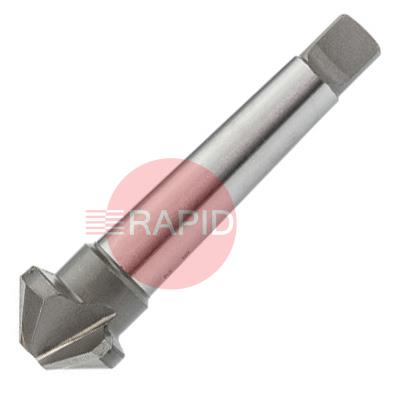

    HMT CarbideMax TCT Morse Taper Shank (MT2) 90° Countersink 31mm
    602030-0310

    £567.33  EX VAT
    SSP Suggested Selling Price = £667.45  YOU SAVE £100.12
     Buy in 3 easy interest free payments of £189.11† with
    A premium TCT countersink designed for fast, clean 90° countersinking in steel. The brazed CarbideMax cutting edges deliver long tool life and consistent results in tough materials, while the MT2 Morse Taper shank provides rigid, accurate mounting in magnet drills and pillar drills.

    HMT Countersinks FAQs

    Answers to common questions about choosing and using countersinks for magnetic drills, drill presses and power drills.

    Should I choose an 82 degree or a 90 degree countersink?icon-minus-redicon-plus-red

    Match the countersink angle to the screw head. Metric countersunk screws, including metric flat head socket screws, normally have a 90 degree head. Inch (UNC/UNF) flat head screws normally have an 82 degree head.

    The two are not interchangeable. A 90 degree head in an 82 degree recess sits deeper and leaves a gap around the edge. An inch head in a 90 degree recess tends to stand proud of the surface. Check the screw standard or the head drawing if you are unsure, and cut a test piece before you start on the real work.

    What is the difference between a countersink and a counterbore?icon-minus-redicon-plus-red

    A countersink cuts a cone-shaped recess that matches a countersunk (flat head) screw, so the head sits flush. A counterbore cuts a cylindrical recess with a flat bottom, which is what a socket head cap screw or a bolt head with a washer needs.

    Countersinks are also used to chamfer or deburr the edge of a drilled or tapped hole, which gives a lead-in for a tap or screw and removes sharp edges. If you only need to break an edge, a countersink is the usual tool; if the fastener has a flat-underside head that must be recessed, you need a counterbore.

    What safety precautions should I take with loose clothing, hair and gloves when countersinking?icon-minus-redicon-plus-red

    Countersinking uses rotating tools, so entanglement is a real risk. The HSE advises avoiding loose or baggy clothing, tying back or covering long hair, and avoiding jewellery, including rings, when operating engineering machinery. It also says many serious workshop accidents could be avoided if gloves were not worn near rotating machinery such as drills.

    Follow the machine maker's instructions and your own risk assessment. Hold or clamp the work securely so it cannot spin with the cutter, and keep hands clear of the rotating tool.

    What is a Weldon shank, and how should I fit the countersink in a magnetic drill?icon-minus-redicon-plus-red

    A Weldon shank is a round shank with one or more flats machined on it. A screw in the machine's holder or arbor bears on the flat, which stops the tool from twisting or pulling out under load.

    Make sure the shank size and flat style match the holder, that the shank is fully inserted, and that the screw is tightened onto the flat before each use. Some machines with quick-change fittings need an adapter for standard Weldon shanks, so check before buying. Never use a countersink in a holder it does not fit, and always follow the magnetic drill maker's manual for fitting, clamping and the speed range.
