    Rapid Ref : 402140

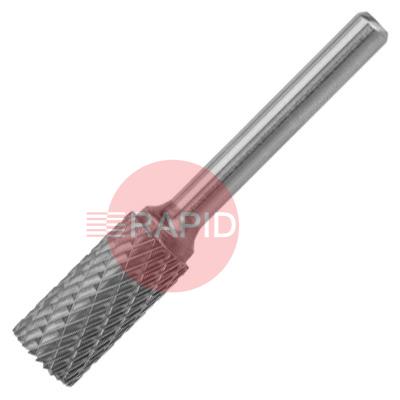

    HMT TCT Burr (Cylinder)
    402140

    Select Option
    Prices From £17.47 ex VAT
    HMT TCT Burrs are made to the highest specifications, giving metalworkers a precision cut, high control, and long life. These burrs are recommended for use with high-speed die grinders or straight grinders. All burrs are 100% braze tested for strength and safety.

    HMT TCT Burrs FAQs

    Straight answers on choosing, fitting and using tungsten carbide rotary burrs for deburring, shaping and weld dressing.

    How do I choose the right burr shape?icon-minus-redicon-plus-red

    Pick the shape that fits the surface you are working on. A cylinder, with a flat or rounded end, suits flat surfaces, edge deburring and weld removal. A ball suits concave cuts, hollowing and rounding edges. A tree (pointed or rounded) is used for V-grooves, fillets and curves, and a flame reaches tight areas while still working larger surfaces. A cone is handy for chamfering and deburring in narrow spaces.

    If you are unsure, a mixed set of common shapes is a sensible starting point. Shape letter codes differ between makers, so check the description rather than relying on the code alone.

    What is the difference between single cut, double cut and aluminium cut burrs?icon-minus-redicon-plus-red

    A single cut burr has one spiral flute and removes material quickly, usually leaving a rougher finish. A double cut burr has a second set of cross-cut teeth that breaks the chips up, giving better control and a smoother finish. An aluminium cut burr has wide, deep flutes that clear soft metal and resist clogging.

    For aluminium and other soft metals, an aluminium cut burr is the usual choice. For steel and stainless, suppliers differ: many suggest double cut for control and finish, while some prefer single cut for faster removal. Check the burr maker's recommendation for your material.

    What speed should I run a carbide burr at?icon-minus-redicon-plus-red

    Never exceed the maximum speed marked on the burr or the grinder. The burr's rated maximum should be at least as high as the speed of the tool you are using, and a die grinder should be checked against its own marked speed.

    Within that limit, harder metals such as stainless steel usually need a lower speed than soft metals such as aluminium. Burrs with long shanks need extra care and a reduced speed. If you are unsure of the actual speed of an air or electric grinder, check the maker's data and have it verified before fitting the burr.

    How do I fit a burr in the grinder correctly?icon-minus-redicon-plus-red

    Make sure the shank diameter matches the collet. Do not mix metric shanks with inch collets, as a burr that looks close can work loose and be thrown out even when tightened firmly. Push the shank well into the collet so that only the head and as little shank as possible is exposed, and keep at least the minimum grip the grinder maker specifies.

    Tighten the collet properly, then run a new burr briefly in a safe position, away from people, before starting work. Stop at once if there is excessive vibration.
