    Rapid Ref : 790037152

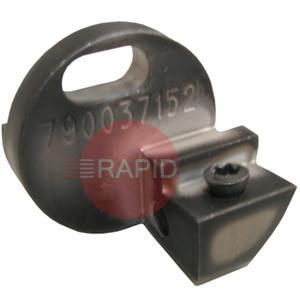

    Orbitalum WH12-I Standard Tool Holder for Squaring, for RPG ONE, RPG 1.5, RPG 2.5,
    790037152

    £283.00  EX VAT
     Buy in 3 easy interest free payments of £94.33† with

    Orbitalum WH12-I standard tool holder for squaring, for RPG 1.5, RPG 2.5, Tube OD 3.0 - 63.5mm.*

    Fits multifunctional tool 790038314. Adjustable tool holder including Torx fixing screw. For max wall thickness of 3mm.

    * Recommended application 3.0 - 12.7mm.

    Related Items

    RPG Tools FAQs

    Practical answers on tool holders, screws and cutting tools for portable tube squaring and bevelling machines.

    What does a tool holder do on a tube squaring or bevelling machine?icon-minus-redicon-plus-red

    The tool holder carries the cutting tool and fixes it to the machine's rotating head, so the cutter travels in a circle around the tube end. This lets the machine face or bevel the end of the tube so that it is ready for welding.

    Different holders position the cutter differently, which is why the same machine can square, bevel or work on small fittings just by changing the holder. Always use a holder listed for your machine in its manual.

    What is the difference between a squaring holder and a bevelling holder?icon-minus-redicon-plus-red

    A squaring (facing) holder presents the cutter straight across the tube end, to produce a flat end at right angles to the tube. A bevelling holder sets the cutter at an angle to cut a sloped edge on the tube end.

    Bevelling holders are made in set angles, so choose the angle your weld procedure or joint design calls for. Squaring holders are usually specific to a machine range and the tube sizes it handles, so check the machine manual or data plate before ordering.

    How do I choose the right holder for my tube?icon-minus-redicon-plus-red

    Start with the machine, because holders are normally made for particular machine ranges. Then consider the tube outside diameter range, the wall thickness and the material, and whether you need to square, bevel or work on small fittings.

    The machine manual lists compatible holders and the limits of each, including the largest wall the machine can cut. Do not exceed those limits. If you are unsure, our team can help you match a holder to your machine and job.

    When does a tube end need a bevel rather than just squaring?icon-minus-redicon-plus-red

    Thin-walled tube is often welded square, particularly with automated TIG welding. Thicker walls usually need a bevel so the weld can penetrate fully through the joint and fuse properly.

    The point at which a bevel is needed depends on the wall thickness, material, welding process and the applicable procedure or specification. Check your weld procedure rather than choosing by rule of thumb.
