HMT TCT Burrs FAQs
Straight answers on choosing, fitting and using tungsten carbide rotary burrs for deburring, shaping and weld dressing.
What are tungsten carbide (TCT) burrs used for?

TCT burrs are rotary files that run in a die grinder or similar high-speed tool. They remove material from metal quickly and are used for deburring cut edges, chamfering, shaping, blending and cleaning up welds, as well as enlarging or finishing holes and working into awkward corners.
Carbide stays hard at working temperatures, so a burr usually outlasts an ordinary steel file or a grinding stone on the same job. Always match the burr to the material and the shape of the job, and follow the burr and grinder makers' instructions.
How do I choose the right burr shape?

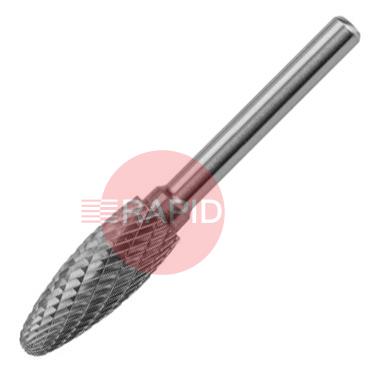

Pick the shape that fits the surface you are working on. A cylinder, with a flat or rounded end, suits flat surfaces, edge deburring and weld removal. A ball suits concave cuts, hollowing and rounding edges. A tree (pointed or rounded) is used for V-grooves, fillets and curves, and a flame reaches tight areas while still working larger surfaces. A cone is handy for chamfering and deburring in narrow spaces.
If you are unsure, a mixed set of common shapes is a sensible starting point. Shape letter codes differ between makers, so check the description rather than relying on the code alone.
What speed should I run a carbide burr at?

Never exceed the maximum speed marked on the burr or the grinder. The burr's rated maximum should be at least as high as the speed of the tool you are using, and a die grinder should be checked against its own marked speed.
Within that limit, harder metals such as stainless steel usually need a lower speed than soft metals such as aluminium. Burrs with long shanks need extra care and a reduced speed. If you are unsure of the actual speed of an air or electric grinder, check the maker's data and have it verified before fitting the burr.
How do I fit a burr in the grinder correctly?

Make sure the shank diameter matches the collet. Do not mix metric shanks with inch collets, as a burr that looks close can work loose and be thrown out even when tightened firmly. Push the shank well into the collet so that only the head and as little shank as possible is exposed, and keep at least the minimum grip the grinder maker specifies.
Tighten the collet properly, then run a new burr briefly in a safe position, away from people, before starting work. Stop at once if there is excessive vibration.
